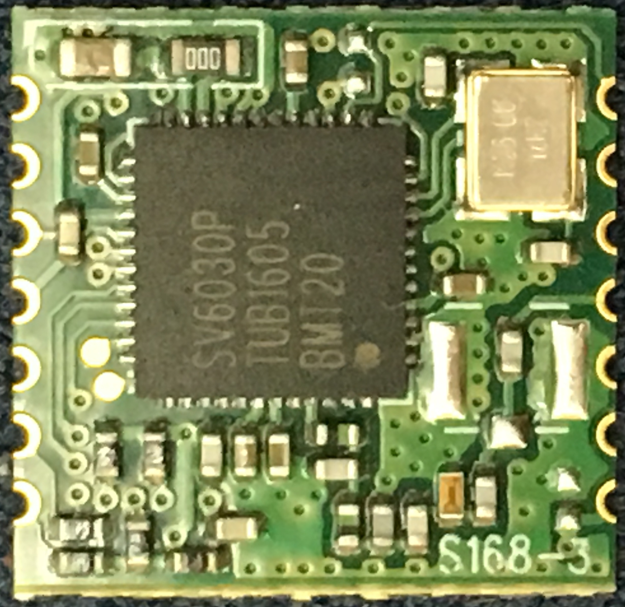

| Main Chip |
SV6030P |
| Type |
2.4GHz, 1T1R |
| Memory |
Embedded SRAM |
| Wifi Standard |
802.11 b/g/n |
| Host Interface |
SDIO 2.0 |
| Application |
Drone-CAM, IPCAM, WIFI Video/Audio |
| Antenna_Type |
External |
| Tx Power |
802.11b: 17dBm
802.11g: 14dBm
802.11n: 13dBm |
| Rx Sensitivity |
802.11b: -85dBm
802.11g: -72dBm
802.11n: -68dBm |
| Security |
WEP 64/128, WPA, WPA2 |
| Dimension |
13mm(L)*13.5mm(W)*1.5mm(H) |
| Power Consumption |
3.3VDC |
