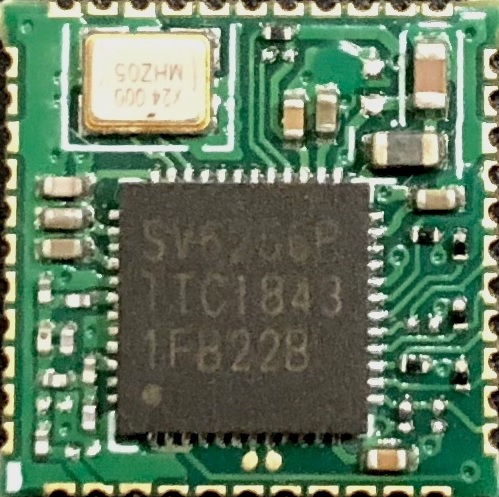

ITM-1056A

Main Chip SV6256P
Type WLAN 2.4GHz+5HGz, 1T1R
Memory Embedded SRAM
Wifi Standard 802.11 a/b/g/n
Host Interface SDIO
Application Tablet, OTT box, IPCAM, Portable devices
Antenna_Type External Antenna
Tx Power 802.11b: 18dBm (2.4GHz)
802.11g: 14dBm (2.4GHz)
802.11n: 14dBm (2.4GHz)
802.11a: 14dBm (5GHz)
802.11n: 14dBm (5GHz)
Rx Sensitivity 802.11b: -88dBm (11Mbps)
802.11g: -73dBm (54Mbps)
802.11n: -69dBm (MCS7/HT40/2.4GHz)
802.11a: -70dBm (54Mbps)
802.11n: -66dBm (MCS7/HT40/5GHz)
Security WEP 64/128, WPA, WPA2
Dimension 12mm(L)*12mm(W)*1.5(H) mm
Power Consumption 3.3VDC

Datasheet

ITM-1056A Datasheet (EN)
