| Main Chip |

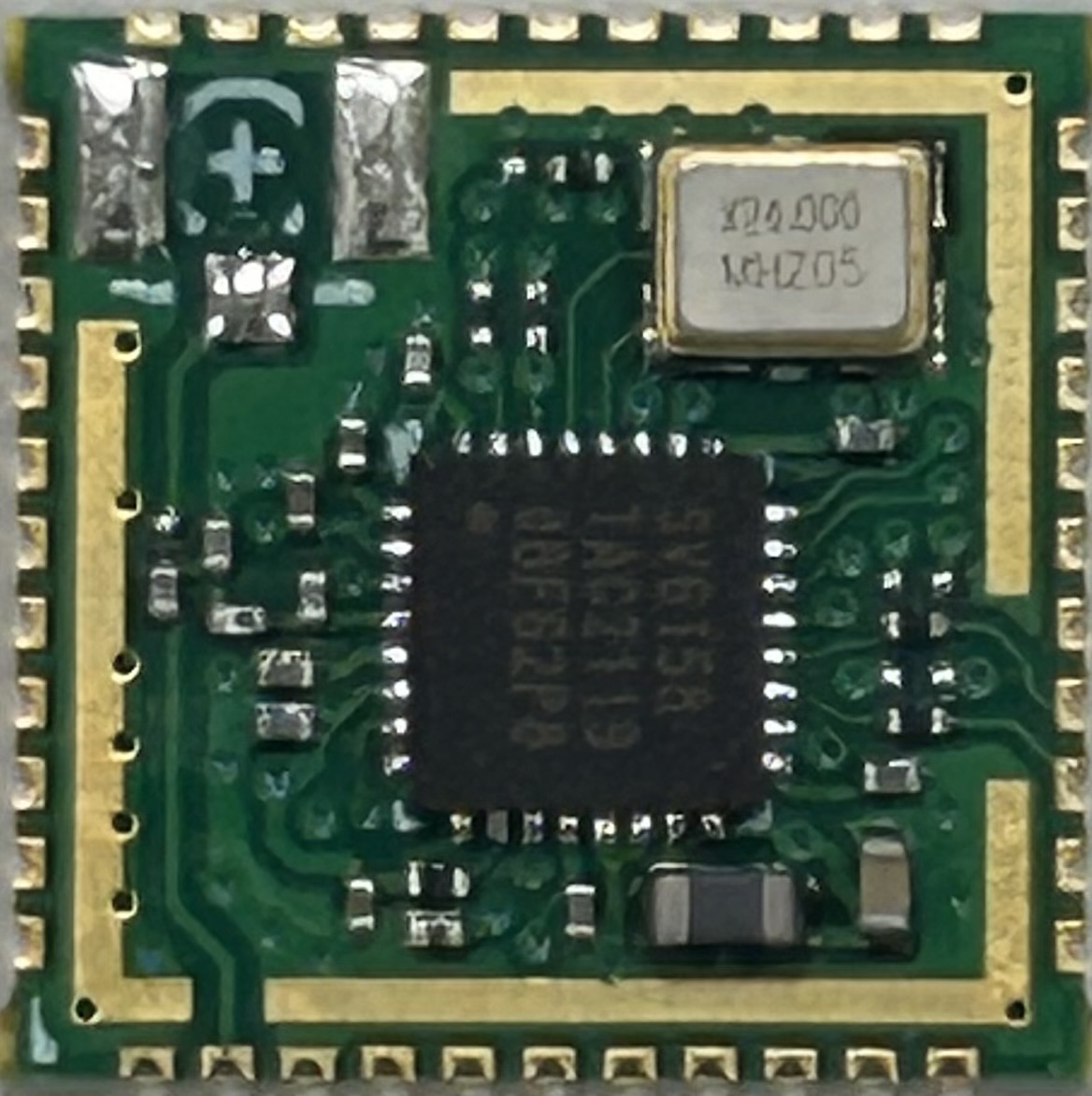

SV6158 |
| Type |
WLAN 2.4GHz, 1T1R |
| Memory |
Embedded SRAM |
| Wifi Standard |
802.11 b/g/n |
| Host Interface |
SDIO/SPI |
| Application |
Tablet, OTT Box, IP Camera, Portable Devices |
| Antenna_Type |
External |
| Tx Power |
802.11b: 18dBm
802.11g: 14dBm
802.11n: 14dBm
|
| Rx Sensitivity |
802.11b: -88dBm (11Mbps)
802.11g: -73dBm (54Mbps)
802.11n: -72dBm (MCS7,HT20)
|
| Security |
WEP 64/128, WPA, WPA2, WPA3 |
| Dimension |
12mm(L)*12mm(W)*1.5mm(H) |
| Power Consumption |
3.3VDC |
