| CPU |
Embedded 32bit KM4+KM0 CPU |
| Flash |
32Mbit, SPI Flash |
| Memory |
Built-in 512KB+64KB RAM |
| Wifi Standard |
802.11 a/b/g/n |
| I/O Interface |
GPIO,PWM,UART,I2C,I2S,SPI,SDIO,ADC,USB |
| Function |
2.4GHz/5GHz WLAN + BLE 5.0 |

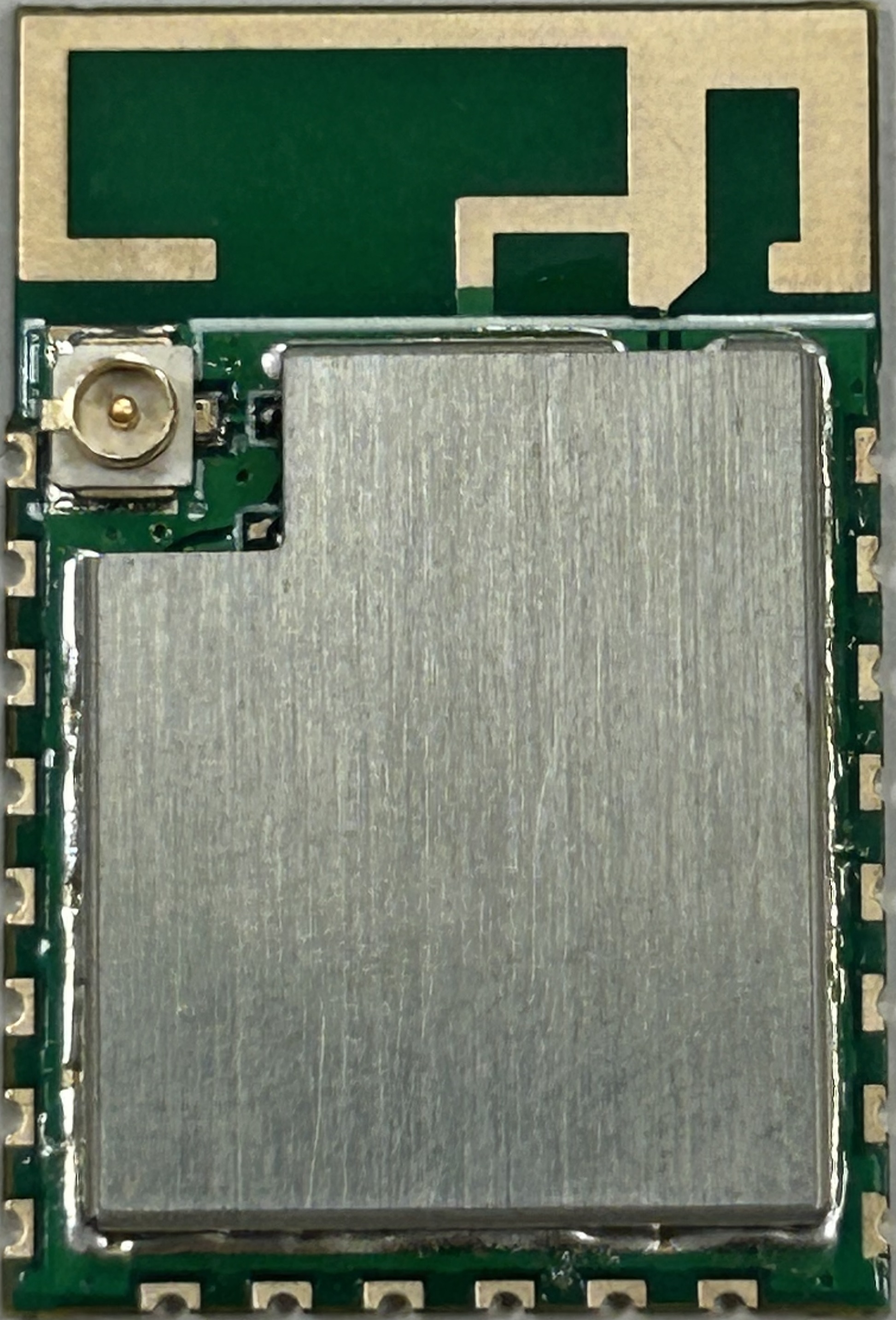

| Antenna_Type |
Printed Antenna
IPEX Connector |
| Tx Power |
802.11b: 18dBm (2.4GHz)
802.11g: 15dBm (2.4GHz)
802.11n: 14dBm (2.4GHz)
802.11a: 14dBm (5GHz)
802.11n: 13dBm (5GHz)
BLE: 4dBm |
| Rx Sensitivity |
802.11b: -88dBm (11Mbps)
802.11g: -74dBm (54Mbps)
802.11n: -69dBm (MCS7/HT40/2.4GHz)
802.11a: -73dBm (54Mbps)
802.11n: -68dBm (MCS7/HT40/5GHz)
BLE: -98dBm (LE 1M) |
| Security |
WEP 64/128, WPA, WPA2 |
| Dimension |
24.0mm(L)*16mm(W)*2.0mm(H) |
| Power Consumption |
3.3VDC |
