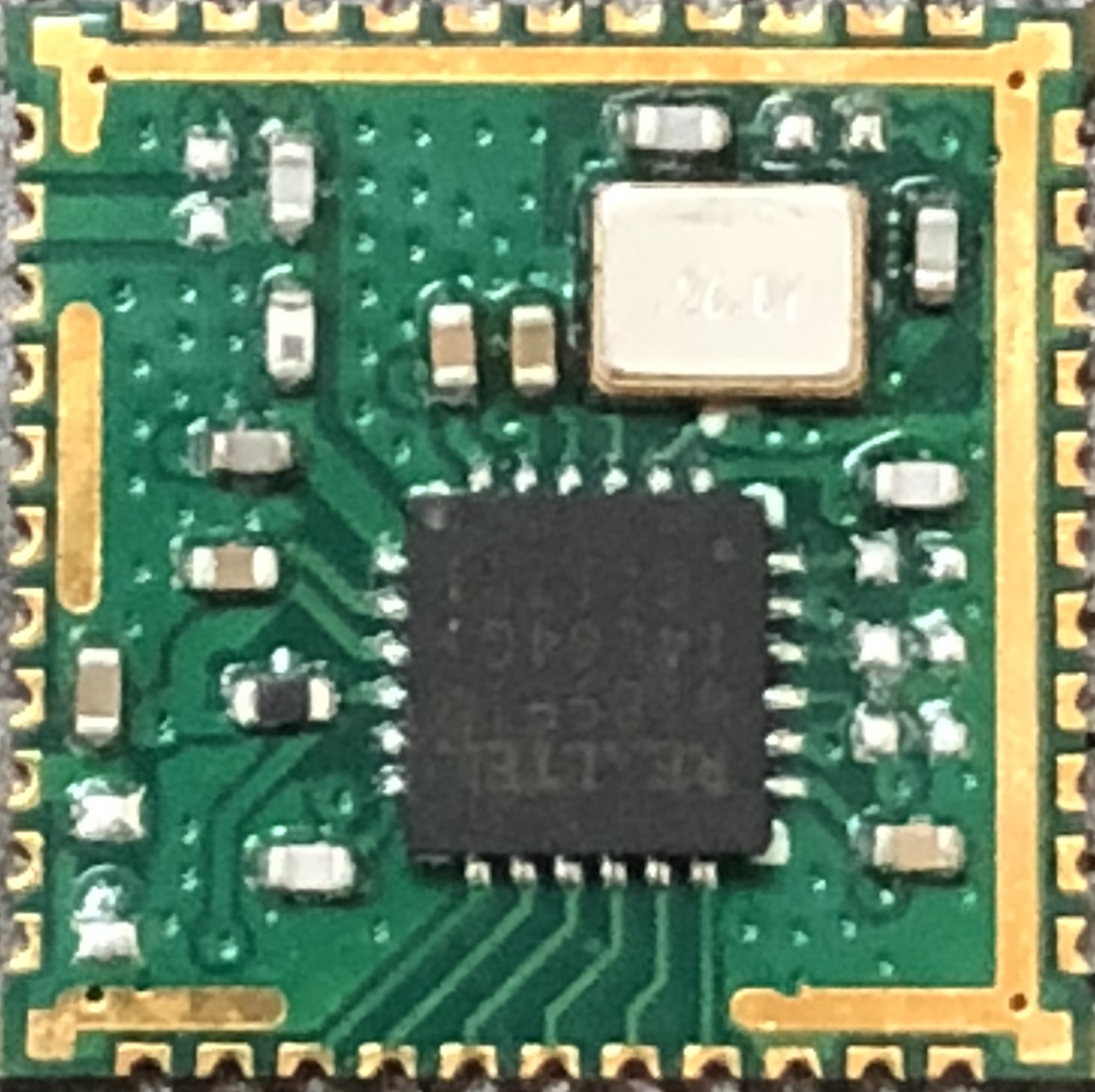

ITM-1189F

Main Chip RTL8189FTV
Type WLAN 2.4GHz, 1T1R
Memory Embedded SRAM
Wifi Standard 802.11 b/g/n
Host Interface SDIO
Application Tablet, OTT box, IPCAM, Portable devices
Antenna_Type External
Tx Power 802.11b: 16dBm
802.11g: 14dBm
802.11n: 13dBm
Rx Sensitivity 802.11b: -85dBm
802.11g: -70dBm
802.11n: -66dBm (HT40)
Security WEP 64/128, WPA, WPA2
Dimension 12mm(L)*12mm(W)*1.5(H) mm
Power Consumption 3.3VDC

Datasheet

ITM-1189F Datasheet (EN)
