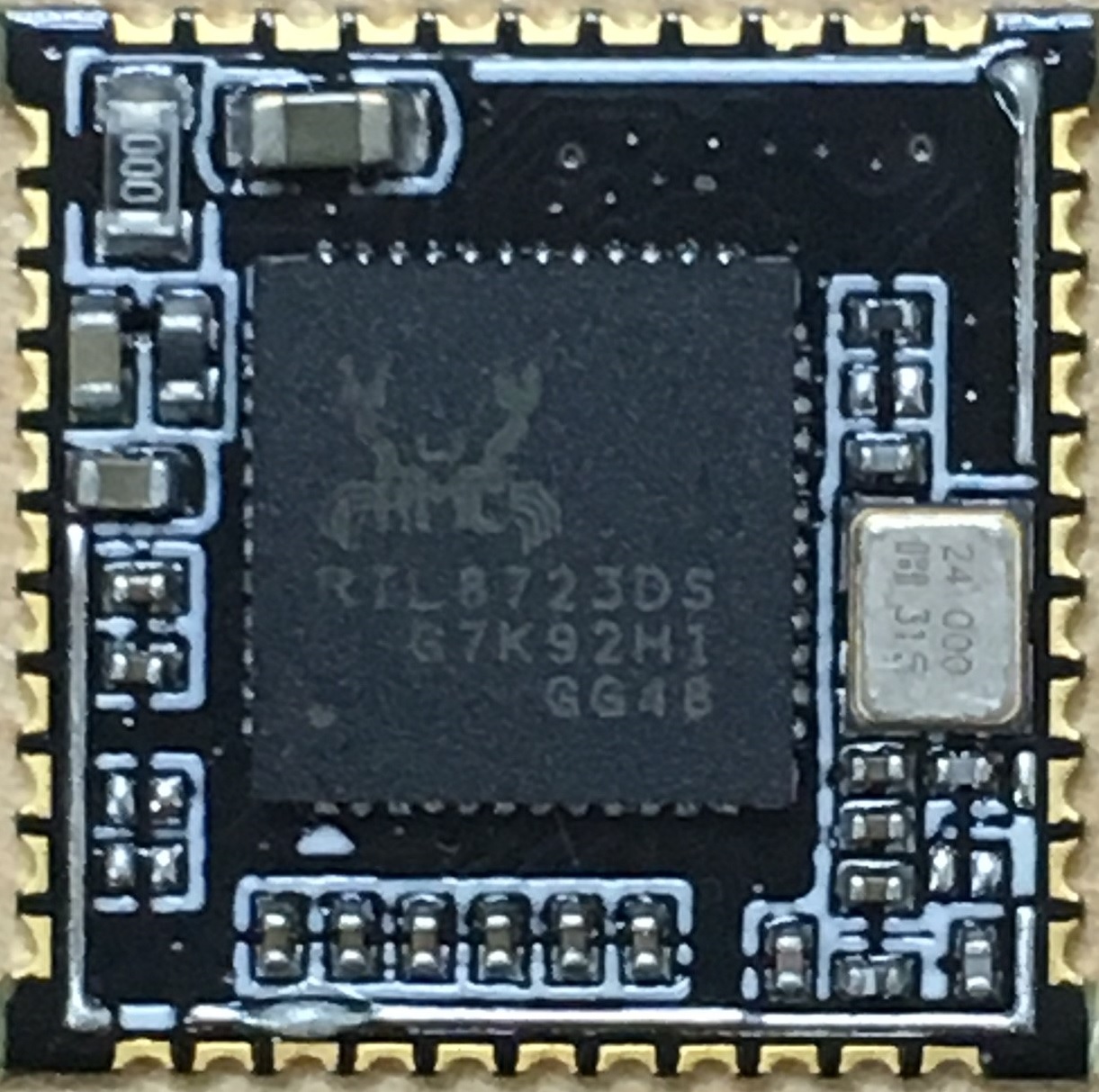

| Main Chip |
RTL8723DS |
| Type |
WLAN 2.4GHz, 1T1R
Bluetooth v2.1/3.0/4.2 |
| Memory |
Embedded SRAM |
| Wifi Standard |
802.11 b/g/n |
| Host Interface |
SDIO 2.0 + HS-UART |
| Application |
Tablet, OTT box, IPCAM, Portable devices |
| Antenna_Type |
External Antenna |
| Tx Power |
802.11b: 16dBm
802.11g: 14dBm
802.11n: 13dBm |
| Rx Sensitivity |
802.11b: -85dBm
802.11g: -72dBm
802.11n: -68dBm |
| Security |
WEP 64/128, WPA, WPA2 |
| Dimension |
12mm(L)*12mm(W)*1.5(H) mm |
| Power Consumption |
3.3VDC |
