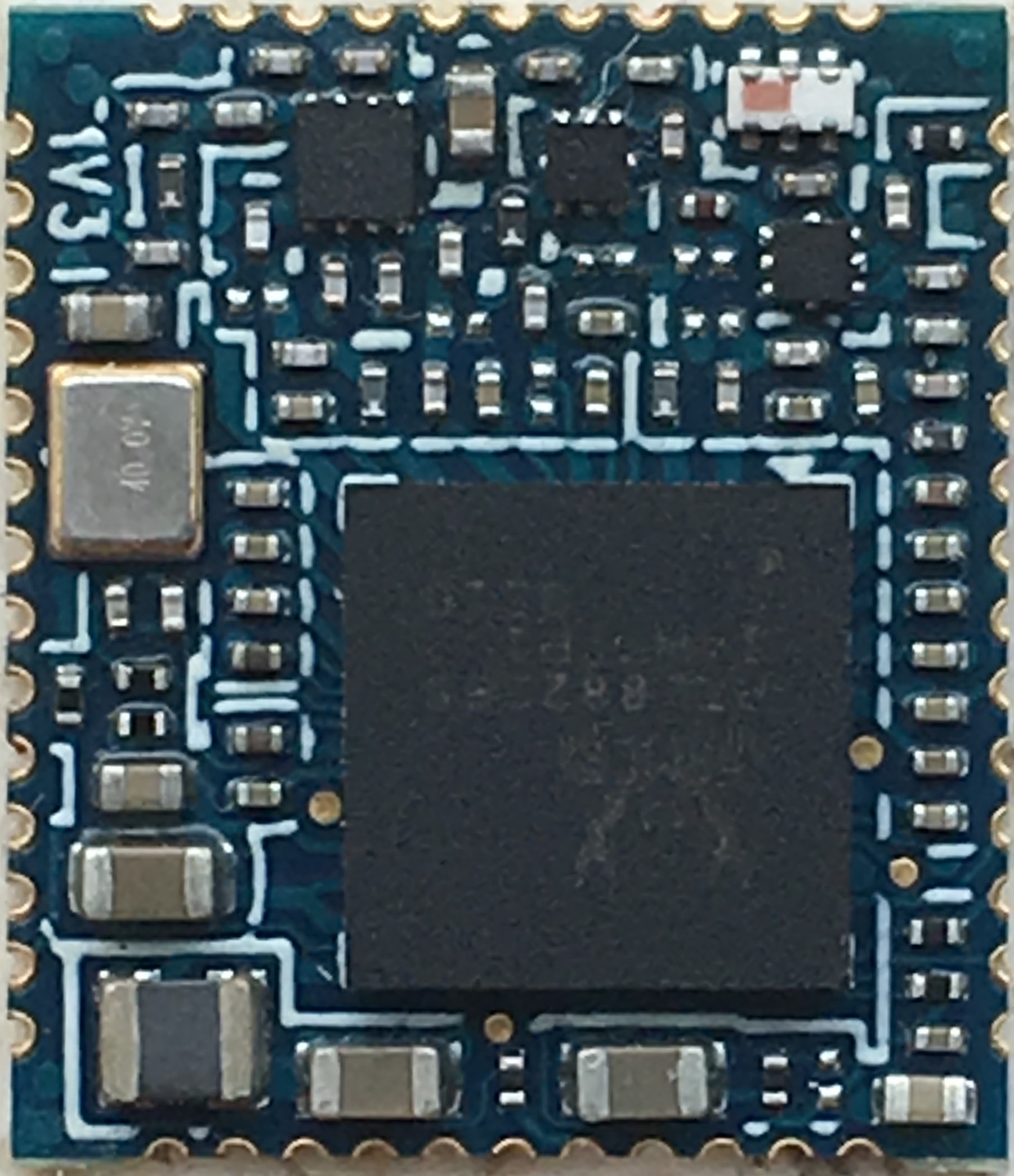

| Main Chip |
RTL8822BS |
| Type |
WLAN 2.4GHz/5G, 2T2R
Bluetooth v2.1/3.0/4.1(4.2) |
| Memory |
Embedded SRAM |
| Wifi Standard |
802.11 a/b/g/n/ac |
| Host Interface |
SDIO 1.1/2.0/3.0 + HS-UART |
| Application |
Tablet, OTT box, IPCAM, Portable devices |
| Antenna_Type |
External Antenna |
| Tx Power |
802.11b: 16dBm
802.11g: 14dBm
802.11n: 13dBm
802.11a: 13dBm
802.11ac: 10dBm |
| Rx Sensitivity |
802.11b: -85dBm (11M)
802.11g: -70dBm (54M)
802.11n: -66dBm (HT40)
802.11a: -70dBm (54M)
802.11ac: -56dBm (HT80, MCS9) |
| Security |
WEP 64/128, WPA, WPA2 |
| Dimension |
15.0mm(L)*13.0mm(W)*2.0(H) mm |
| Power Consumption |
3.3VDC |
