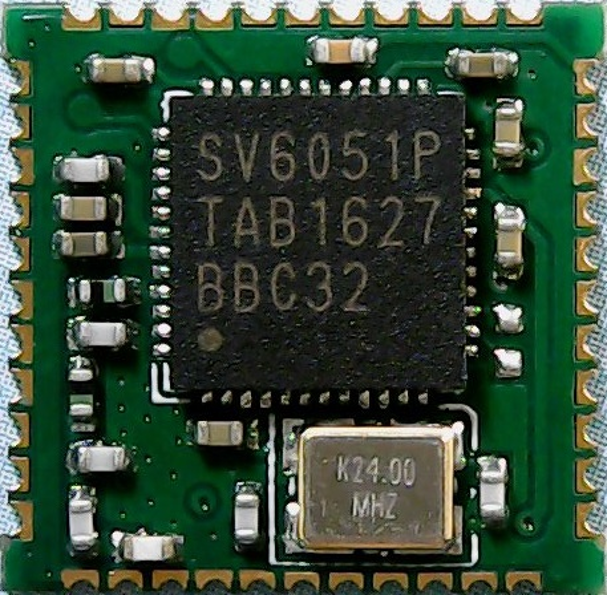

ITM-1020

Main Chip SV6051P
Type 2.4GHz, 1T1R
Memory Embedded SRAM
Wifi Standard 802.11 b/g/n
Host Interface SDIO 2.0
Application Tablet, OTT box, IPCAM, Portable devices
Antenna_Type External
Tx Power 802.11b: 17dBm
802.11g: 14dBm
802.11n: 13dBm
Rx Sensitivity 802.11b: -85dBm
802.11g: -72dBm
802.11n: -68dBm
Security WEP 64/128, WPA, WPA2
Dimension 12mm(L)*12mm(W)*1.5mm(H)
Power Consumption 3.3VDC

Datasheet

ITM-1020 Datasheet (EN)
