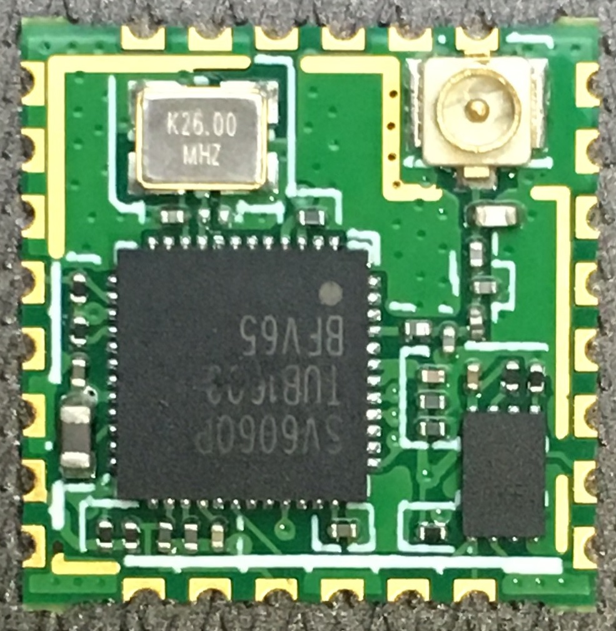

ITM-1016

CPU Embedded 32bit MCU
Flash 4Mbit/8Mbit, SPI Flash
Memory Built-in RAM 192KB
Wifi Standard 802.11 b/g/n
I/O Interface GPIO*6 + UART*2
Function AP / Station Mode
Antenna_Type External Antenna
Tx Power 802.11b: 16dBm
802.11g: 14dBm
802.11n: 13dBm
Rx Sensitivity 802.11b: -85dBm
802.11g: -72dBm
802.11n: -68dBm
Security WEP 64/128, WPA, WPA2
Dimension 14mm(L)*14mm(W)*2.7mm(H)
Power Consumption 3.3VDC

Datasheet

ITM-1016 Datasheet (EN)
